Mitsubishi Fuso Canter FE Series 2014 at Thailand top Truck Dealer and Exporter: Fuso Truck CANTER 4S13/5S13/6C15/8C15 FE-----SRDH1 FE71BB8SRDH1, FE73BE6SRDH1, FE84DE6SRDH1, FE85DE7SRDH1, FE85DE7SRDH1

Here are specifications of Fuso Canter available in Thailand.

Detail.

FE71BB8SRDH1.

FE73BE6SRDH1.

FE84DE6SRDH1.

FE85DE7SRDH1.

FE85DG7SRDH1.

Size and weight.

From the wheel.

(WB).

Mm.

2500.

3350.

3850.

Total length.

(OAL).

Mm.

4685.

5910.

6050.

6770.

Overall width.

(OW).

Mm.

1695.

1870.

2050.

Height all.

(OH).

Mm.

2005.

2055.

2260.

Length pickup.

(CE).

Mm.

2991.

4258.

4267.

4987.

Filing period end.

(ROH).

Mm.

1065.

1480.

1700.

Total load.

(GVW).

Kg.

4400.

5700.

6500.

8400.

, 8400.

Weight chassis.

Page.

Kg.

1270.

1345.

1675.

1715.

1725.

Back.

Kg.

500.

705.

845.

880.

895.

Yes.

Kg.

1770.

2050.

2520.

2595.

2620.

Capacity.

Maximum speed.

Km / h.

111.

103.

108.

109.

Maximum climb angle.

% (Tan θ).

55.4.

44.5.

42.5.

33.5.

Turning radius narrow end.

Mm.

5100.

6600.

6000.

6800.

Engine.

Model.

4M42 - 0AT.

4M50 - 7AT7.

A / TIS 2315-2551 (EURO3).

4-stroke 4-cylinder diesel engine.
In a direct jet action.
Cooled water.
Turbo Internet with Cool Colour. And double cam shaft cover on the pump (DOHC).

4-stroke 4-cylinder diesel engine, direct action in a jet.
Cooled water Turbo Internet with Cool Colour.
Common rail system.

To the cylinder x stroke.

Mm.

95 x 105.

114 x 120.

Capacity cylinder.

Cc.

2.977.

4.899.

Are highest.

EEC NET.

92 kw (125 ps) / 3,200 rpm.

110 kw (150 ps) / 2,700 rpm.

Max.

EEC NET.

294 Nm (30 kgf.m) / 1,800 rpm.

471 Nm (48 kgf.m) / 1,600 rpm.

Compression ratio.

18.5:1.

17.5:1.

Generator.

12 Volt, AC 75 Amp.

24 Volt, AC 50 Amp.

Motor starting.

12 Volt, 2.2 kW.

24 Volt, 3.7 kW.

Electrical system.

Battery.

12 Volt x 1, 110 Ah.
The rate charged for 20 hours.

12 Volt x 2, 65 Ah at 20 hour charge rate.

Fuel system.

Fuel tank.

Liter.

70.

100.

Transmission system.

Clutch.

Dry single plate with hydraulic control c.

Gear.

Model.

M036S5.

M036S6.

Form.

5 forward gears, gear 2-5 for Synchrotron mesh gear transmission and a reverse Constantine out the mesh.

Six forward gears, gears 2-6.
A Synchrotron mesh.
A transmission gear and reverse.
Constantine out the mesh.

Gear ratio.

Gear 1.

5.175.

Gear 2.

3.261.

2.913.

Gear 3.

1.785.

1.682.

Gear 4.

1.000.

5 gears.

0.715.

0.793.

6 gears.

0.669.

REVERSE GEAR.

5.175.

Gear ratio.

5.714.

6.166.

5.428.

5.714.

Shaft page.

Form.

Ice Beam, reversed Elliott (I - Beam, Reverrse Elliot).

Capacity.

Kg.

2600.

2900.

3100.

Rear axle.

Form.

Floating (Full Floating), single reduction gear, the High Pointe ด์ (Hypoid Gear).

Capacity.

Kg.

3800.

4100.

4300.

5600.

Brakes.

Form.

C hydraulic circuit with two air pot labor.
(Vacuum Sorvo Assist).

Hydraulic circuit c 2.
Layer with hydraulic pressure.
HBB (Hydrualic Booster Brake).

Brake hand.

Flex brake mechanism for the action that central shaft.

Brake assist.

Exhaust Brake (Exhaust Brake).

Steering.

Form.

Bearing rotation of adjustable steering 4 way.

Bearing rotation of four-way adjustable steering wheel with power.

Ratio.

22.6.

22.7.

Frame chassis.

Form.

Staircase Reinforced with steel.

Suspension.

Page.

Plate with double leaf spring shock absorber second stroke.

Back.

Plate with double leaf spring shock absorber second stroke.

Wheels and tires.

Tire size.

7.50 - 15 - 10PR.

7.00 - 16 - 10PR.

7.50 - 16 - 12PR.

7.50 - 16 - 14PR.

Wheel size saucepan.

15 x 5.50F - 50 - 4.5t, 6 studs.

16 x 5.50F - 115 - 8t, 5 studs.

16 x 6.00 GS - 127 - 9t, 6 studs.

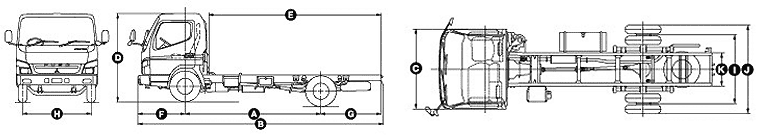

mitsubishi canter fe

A = From the wheel .	D = Height all	G = filing period end .	J = the overall width .
B = total length .	E = length pickup	H = width of the middle axle .	K = width SAS Seas .
C = car width head .	F = From perk	I = center width rear wheel

Model .	A.	B.	C.	D.	E.	F.	G.	H.	I.	J.	K.
FE71BB8SRDH1.	2,500	4,685	1,695	2,005	2,991	950	1,065	1,390	1,380	1,695	703
FE73BE6SRDH1.	3,350	5,910	1,695	2,055	4,258	925	1,480	1,390	1,435	1,870	703
FE84DE6SRDH1.	3,350	6,050	1,995	2,260	4,267	1,070	1,480	1,665	1,560	2,050	750
FE85DE7SRDH1.	3,350	6,050	1,995	2,260	4,267	1,070	1,480	1,675	1,560	2,050	750
FE85DG7SRDH1.	3,850	6,770	1,995	2,260	4,987	1,070	1,700	1,675	1,560	2,050	750
